Victory Refrigeration RSA-2D-S1-PT-HC

SKU : RSA-2D-S1-PT-HC Add to Wishlist Compare

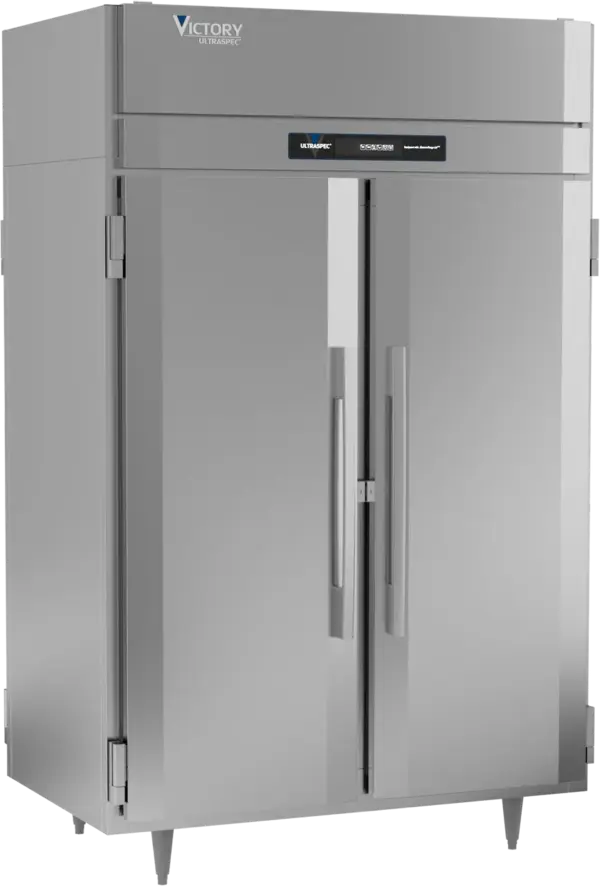

The Victory Refrigeration RSA-2D-S1-PT-HC is a high-performance pass-thru refrigerator from the UltraSpec™ Series, designed for efficiency and durability. With a spacious 48.33 cu. ft. capacity, it features two sections and four full-height solid hinged doors for easy access. The interior is equipped with six silver freeze (chrome-style) shelves, providing ample storage for various items. Constructed with a stainless steel exterior and aluminum interior, this standard depth cabinet ensures longevity and easy cleaning. The TOUCH POINT™ electronic temperature control and indicator allow for precise temperature management, while the LED lighting enhances visibility inside the unit. Utilizing advanced expansion valve technology and R290 Hydrocarbon refrigerant, this refrigerator operates efficiently with a 1/3 HP compressor. The Santoprene door gaskets offer a reliable seal, and the stainless steel breakers enhance durability. The unit is cULus, UL EPH Classified, and UL-Sanitation certified, ensuring compliance with industry standards. Proudly made in the USA, the RSA-2D-S1-PT-HC is an ideal choice for commercial kitchens seeking a reliable and efficient refrigeration solution.

Checking locations…

Email Me My Price

Availability

Looking for available order locations…

Product Protection

Usually ships within 1 business day

Victory Refrigeration View all Victory RefrigerationPass-Thru Refrigerators

Specifications

Cabinet options	Exterior laminate (contact factory for pricing), Front Kick Plate (per side on pass-thru models), Heat shield, left side, Heat shield, right side, Louvered upper case ends - each, Stainless steel case back - with stainless steel rear air grille, for reach-in models, Tie-in (banking) strips - each
Capacity	47 - 70 cu. ft.
Certifications	UL, UL EPH, UL EPH Classified, UL-Sanitation, cULus
Compressor Location	Top Mounted
Construction	Stainless Steel and Aluminum
Control/Kitchen side door hinging	Control/Kitchen side door hinging: left door hinged on left, right door hinged on left at factory, Control/Kitchen side door hinging: left door hinged on left, right door hinged on right standard, Control/Kitchen side door hinging: left door hinged on right, right door hinged on right at factory
Correctional options	4" Clearance Welded Type A/C Tray Slides, 7" Clearance Welded Type A/C Tray Slides, Additional Door Hinge, Correctional Door Handles, Flanged Feet, Lexan Cover, Lexan Cover: Slotted, No lights Option, Padlock Hasp Assembly, Slotted Top/Back Cover, Tamper-Proof Lights, Tamper-Proof Screws, Top Shroud Bracket
Correctional options (all prices are per unit)	4" Clearance Welded Type A/C Tray Slides, 7" Clearance Welded Type A/C Tray Slides, Additional Door Hinge, Banking Strips (Contact Regional Sales Manager for pricing), Correctional Door Handles, Flanged feet, Lexan Cover, Lexan Cover: Slotted, No lights Option, Padlock Hasp Assembly, Slotted Top/Back Cover, Tamper-Proof Lights, Tamper-Proof Screws, Top Shroud Bracket
Delivery	If a top extension of 93" or more is requested AND liftgate delivery is needed then this unit will require flatbed delivery, Lift gate delivery, per load (Required if there is no dock at the location or if there is no forklift onsite to take the unit(s) off the truck), Limited access (Required if delivery is needed outside of M-F 8-5), Notification (call before) (Required if there is a chance there will not be someone onsite to accept delivery M-F 8-5), Residential delivery, Theshold Delivery: Driver will deliver and place unit at the exterior threshold.Unit will not be placed inside building., Threshold Delivery: Driver will deliver and place unit at the exterior threshold.Unit will not be placed inside building.
Door Hinge	Left/Right Hinged
Door Size	Full
Door Type	Solid
Door options	Control/Kitchen side: Half doors in lieu of standard full door, two-section, Control/Kitchen side: Standard Glass door in lieu of standard solid door, two-section, Rear/Server side: Half doors in lieu of standard full door, two-section, Rear/Server side: Standard Glass door in lieu of standard solid door, two-section
Export crating	Export crating
Features	Standard Depth Cabinet
FlexTemp	FlexTemp Control Option (28° - 38°F), capable of set points between 28° to 38°F with positive defrost cycles (add -FLEX to end of model number)
Half Doors	No
Hinge Location	Left/Right
Interior options	NOTE: For retrofit tray slide kit information please contact your dedicated Victory customer service team, Silver Freeze Shelf (chrome-style), Silver Freeze Shelf, for "A" tray slides (chrome-style), Silver Freeze Shelf, for A/C & steel rod tray slides (chrome-style), Silver Freeze Shelf, for left or right door (chrome-style), Type "A" Tray Slide Pair, 1 tray slide set for (1) 18" x 26" or (2) 14" x 18" pans, Type "A/C" Tray Slide Pair, 1 tray slide set for (1) 18" x 26" or (2) 14" x 18" or (2) 12" x 20" Pans
Made in	USA
Mounting options	3" Casters, in lieu of standard 6" stainless steel legs, no charge when specified on order, 6" Casters, in lieu of standard 6" stainless steel legs, no charge when specified on order, 6" Seismic Legs (set of 4), Legs, set of 4, 6" high adjustable stainless steel, standard
Number of Doors	4
OEM Product type	Commercial Refrigerator
OEM Warranty	7 Years
Rear/Server side door hinging	Rear/Server side door hinging: left door hinged on left, right door hinged on left at factory, Rear/Server side door hinging: left door hinged on left, right door hinged on right standard, Rear/Server side door hinging: left door hinged on right, right door hinged on right at factory
Refrigerant Type	R-290
Refrigeration	Remote refrigeration system by others (part # -R) (TO BE SUPPLIED BY OTHERS)
Refrigerator Capacity	48.33 cu. ft.
Sections	2
Temperature Range	36 - 38 Degrees F
Voltage	115 Volts
What's Included	Voltage: 115v/60/1-ph, 6.5 amps, with cord & NEMA 5-15P, Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
