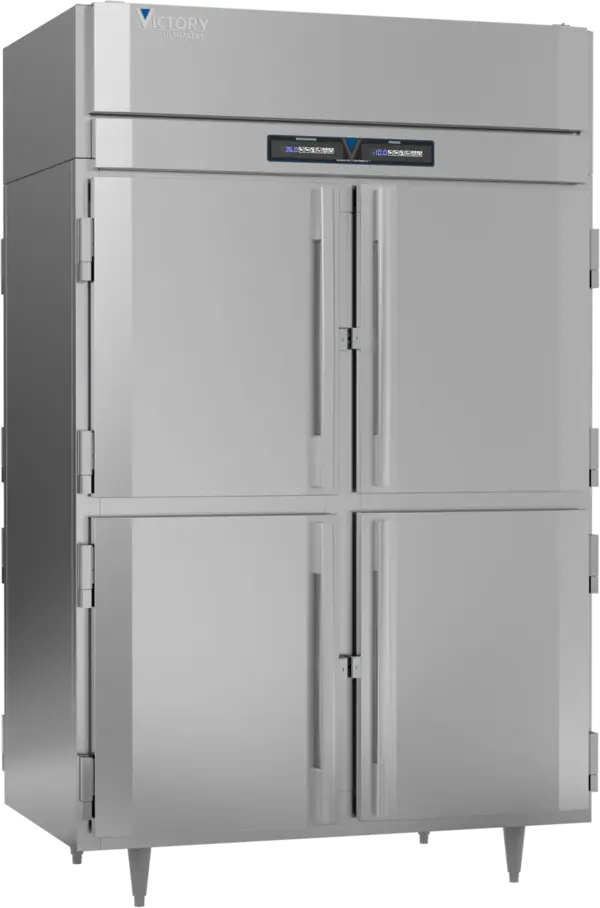

Victory Refrigeration RFS-2D-S1-PT-HD-HC

SKU : RFS-2D-S1-PT-HD-HC Add to Wishlist Compare

The Victory Refrigeration RFS-2D-S1-PT-HD-HC is a high-performance pass-thru refrigerator/freezer designed for efficiency and durability. Part of the UltraSpec™ Series, it features self-contained refrigeration with a generous 22.9 cu. ft. capacity per section. The unit is equipped with eight half-height solid hinged doors for easy access and six chrome-style wire shelves for optimal organization. Constructed with a stainless steel exterior and interior, this standard depth cabinet ensures longevity and easy cleaning. The TOUCH POINT™ electronic temperature control and indicators provide precise monitoring, while LED lighting enhances visibility inside the unit. Utilizing advanced expansion valve technology, the refrigerator operates with a 1/3 HP compressor and the freezer with a 3/4 HP compressor, ensuring efficient cooling performance. The Santoprene door gaskets offer a tight seal, contributing to energy efficiency. Additional features include stainless steel breakers and compliance with cULus, UL EPH Classified, and UL-Sanitation standards. Proudly made in the USA, this unit is built to meet the demands of any commercial kitchen.

Checking locations…

Email Me My Price

Availability

Looking for available order locations…

Product Protection

Usually ships within 1 business day

Victory Refrigeration View all Victory RefrigerationPass-Thru Dual Temps

Specifications

Cabinet options	Exterior laminate (contact factory for pricing), Front Kick Plate (per side on pass-thru models), Heat shield, left side, Heat shield, right side, Louvered upper case ends - each, Stainless steel case back - with stainless steel rear air grille, for reach-in models, Tie-in (banking) strips - each
Certifications	UL, UL EPH, UL EPH Classified, UL-Sanitation, cULus
Compressor Location	Top Mounted
Construction	Stainless Steel
Control/Kitchen side door hinging	Control/Kitchen side door hinging: left door hinged on left, right door hinged on left at factory, Control/Kitchen side door hinging: left door hinged on left, right door hinged on right standard, Control/Kitchen side door hinging: left door hinged on right, right door hinged on right at factory
Delivery	If a top extension of 93" or more is requested AND liftgate delivery is needed then this unit will require flatbed delivery, Lift gate delivery, per load (Required if there is no dock at the location or if there is no forklift onsite to take the unit(s) off the truck), Limited access (Required if delivery is needed outside of M-F 8-5), Notification (call before) (Required if there is a chance there will not be someone onsite to accept delivery M-F 8-5), Residential delivery, Theshold Delivery: Driver will deliver and place unit at the exterior threshold.Unit will not be placed inside building., Threshold Delivery: Driver will deliver and place unit at the exterior threshold.Unit will not be placed inside building.
Door Type	Solid
Door options	Control/Kitchen side: Standard Glass Half Doors in lieu of standard solid half doors, two-section, Rear/Server side: Standard Glass Half Doors in lieu of standard solid half doors, two-section
Features	LED Lighting
FlexTemp	FlexTemp Control Option (Freezer: 0° - 20°F) (Refrigerator: 28° - 38°F), capable of set points between 0° to 20°F (freezer) & 28° to 38°F (refrigerator) with positive defrost cycles (add -FLEX to end of model number)
Half Doors	Yes
Interior options	NOTE: For retrofit tray slide kit information please contact your dedicated Victory customer service team, Silver Freeze Shelf (chrome-style), Stainless Steel Shelf, Type "A" Tray Slide Pair, 1 tray slide set for (1) 18" x 26" or (2) 14" x 18" pans, Type "A/C" Tray Slide Pair, 1 tray slide set for (1) 18" x 26" or (2) 14" x 18" or (2) 12" x 20" Pans
Made in	USA
Mounting options	3" Casters, in lieu of standard 6" stainless steel legs, no charge when specified on order, 6" Casters, in lieu of standard 6" stainless steel legs, no charge when specified on order, 6" Seismic Legs (set of 4), Legs, set of 4, 6" high adjustable stainless steel, standard
OEM Product type	Commercial Refrigerator
OEM Warranty	7 Years
Rear/Server side door hinging	Rear/Server side door hinging: left door hinged on left, right door hinged on left at factory, Rear/Server side door hinging: left door hinged on left, right door hinged on right standard, Rear/Server side door hinging: left door hinged on right, right door hinged on right at factory
Refrigerant Type	R-134A/R-404A
Refrigeration	Remote refrigeration system by others (part # -R) (TO BE SUPPLIED BY OTHERS)
Sections	2
Voltage	115 Volts
What's Included	Voltage (freezer): 115v/60/1-ph, 9.1 amps, cord with NEMA 5-15P, Voltage (refrigerator): 115v/60/1-ph, 6.5 amps, cord with NEMA 5-15P, Warranty: 7 year parts & labor and 7 year compressor warranty (excludes maintenance items)
